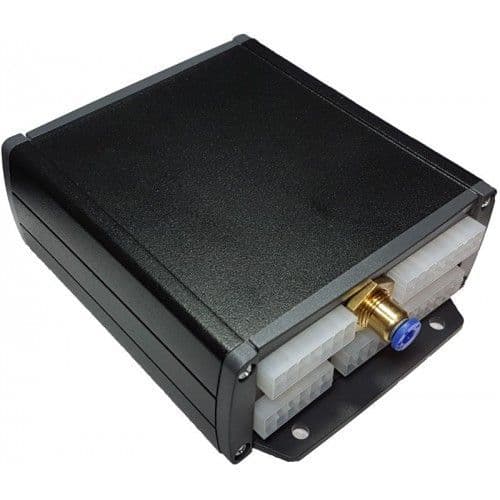

Description
The BCS PnP kit for the M42 E30 allows you to gain full control over the engine while allowing easy fitment into your car, be it the original car or after an engine swap. All OEM functions are maintained.
Ignition options :
- Stock coils - Any BMW coil is supported
- R8 coils with PNPECU coil adapters - R8 coils and PNPECU coil adapters to the BMW COP connectors are supplied by PNPECU
The V4 adapter comes ready wired for a second wideband sensor, the adapter can easily be altered for logic coils without any additional wiring changes thanks to its integrated ignition driver box made by PNPECU. Please select the appropriate ignition setup settings when ordering if you plan on installing your own supplied smart coils.
Kit contents:
- BCS LPC8 Gen2 Dual wideband option ECU
- 1x LSU 4.9 Sensor with extension
- Wiring adapter
- Fast acting air temp sensor
- Air temp sensor extension
LPC8 Gen 2 Dual wideband ECU features
- 400kpa map sensor
- 17 Analog channels
- 5 Digital inputs
- 8 Injector outputs
- 8 Ignition outputs
- 12 Low side outputs / pulls to ground
- 2 Knock inputs
- 1 Full H-bridge
- 2 5v outputs
- 2 LSU4.9 inputs
- 8GB On-board logging
- 2 CAN BUS's
PNPECU V4 Adapter
Updates from previous versions
- Integrated 8 channel ignition driver module that allows easy jumper changing to convert to smart coils. When a channel is not used for ignition then it´s available for low side control in the adapter.
- Second lambda input when the original engine had dual lambda sensors, otherwise single lambda connector is installed.
- 8pin and 14pin auxiliary IO connectors to allow easy adding of sensors and actuators or connecting to external CANBUSES
- All CANBUSES are available in the extra connectors even when used in the OEM loom.
- As many as possible OEM functionality is kept where possible and supported by the standalone ECU
